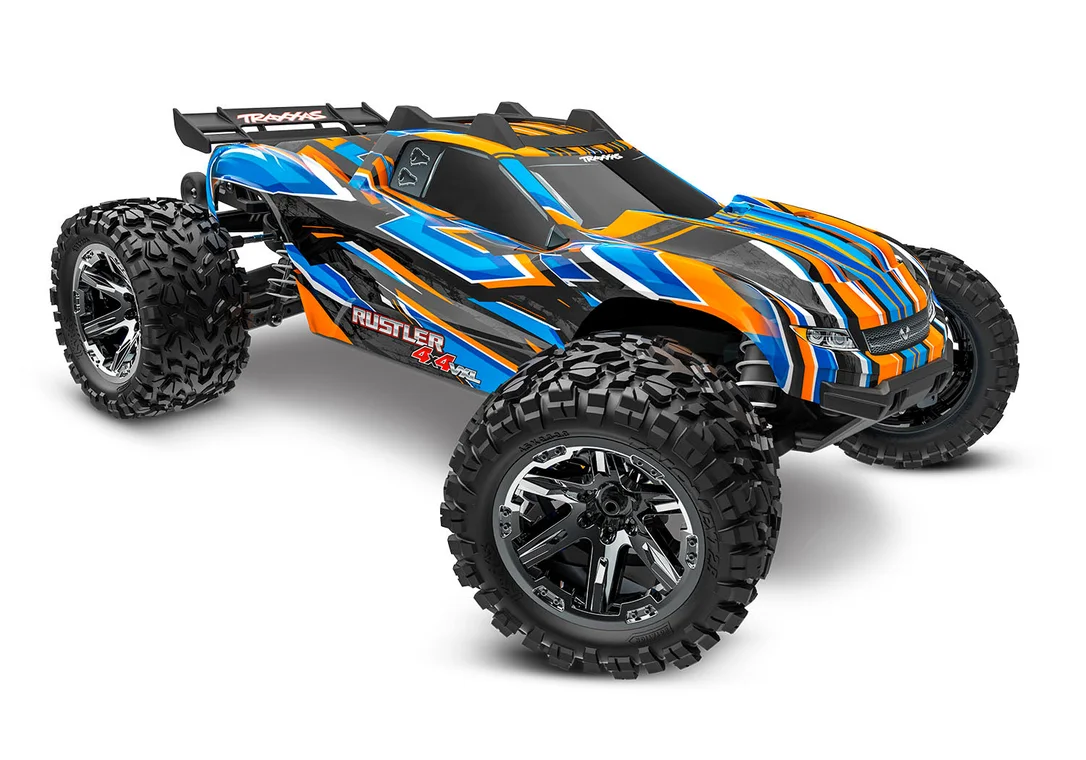

Traxxas: Rustler 4X4 VXL

Description

Experience the Traxxas Rustler 4X4 VXL—fast, tough, and brushless! This 4WD RC truck delivers extreme speed, durability, and all-terrain fun for any RC driver.

What You’ll Need

• 2-3s Lipo and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• 65+ MPH Top Speed
• Clipless ProGraphix Body
• Extreme Heavy Duty Upgrade Kit Installed
• TQi 2.4 GHz High Output Radio System
• VXL-3s Waterproof ESC and Velineon Brushless Motor
• Traxxas Stability Management® (TSM)

Specifications

• Model Name: Rustler 4X4 VXL
• Model Type: Stadium Trucks
• Model Speed: 65+ mph with 3-cell LiPo and 20/54 gearing
• Model Skill Level: 2
• Scale: 1/10
• Weight: 5.12 pounds (2.32 kg)
• Length: 18.78 inches (477 mm)
• Width: 12.94 inches (329 mm)
• Front Track: 12.94 inches (329 mm)
• Rear Track: 12.94 inches (329 mm)
• Height:6.35 inches (161 mm)
• Wheelbase: 11.62 inches (295 mm)
• Center Ground Clearance: 1.1 inches (27 mm)
• Drivetrain: Shaft driven 4WD
• Transmission: Single speed
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Ratio (Internal): 13.97:1
• Gear Pitch: 32 pitch
• Servo(s): 2075 digital high-torque waterproof
• Radio System: TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
• Battery Compartment Specs: 162 mm X 50 mm X 23 mm, 25 mm

Motor Specifications

• Motor Name: Velineon® 3500
• Motor Type: Sensorless brushless
• Motor Weight: 9.24 ounces (262 g)
• Motor Length: 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
• Motor Diameter: 1.41 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: 3.5 mm bullet

ESC Specifications

• ESC Name: VXL-3s™ electronic speed control
• ESC Type: Brushless
• ESC Case Size: 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
• ESC Weight: 3.17 ounces (90 g)
• Motor Connectors: 3.5 mm bullet
• Battery Connectors: Traxxas High-Current Connector
• ESC Power Wire: 12 gauge Maxx® Cable

What’s In The Box

• Rustler 4X4 VXL with Velineon VXL-3s and 3500 kV motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools
• Includes speed pinion
