Description

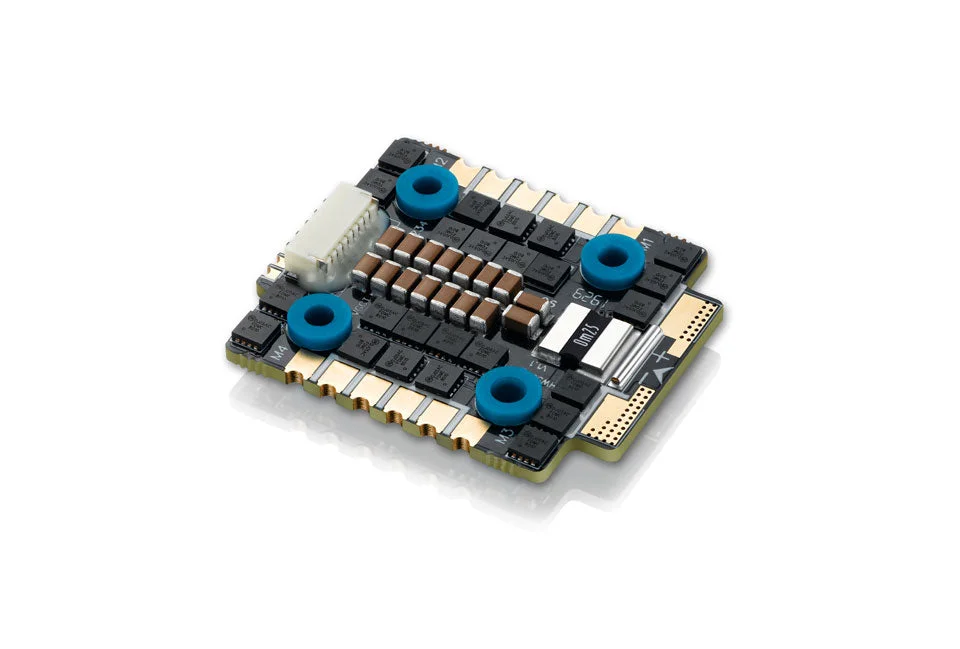

XRotor Micro 40A 4in1 ESC features 32bit MCU and 3rd-generation BLHeli-32 firmware, handles 6S up to 40A per channel. The built-in voltameter module which allows FC to monitor the battery volt & amp in real time. With this 20×20 ESC makes your electronic stack smaller and be able to shave some grams.
Specifications
- Cont./Peak Current: 40Ax4/ 60Ax4
- Input Voltage: 3-6S Lipo
- BEC output: No
Wires and Connectors
- Input Wires: Red-14AWG-100mm/ Black-14AWG-100mm
- Output Wires: No wires but solder tabs
- Input Connectors: XT60 plug enclosed with package.
- Output Connectors: No
(Note: All the wire length above is the original length not the length you see from the outside.)
Features
- Firmware: Hobbywing_XRotor_BLHeli-32 Version
- ESC Programming: BLHeliSuite32
- Stick Programming supported
- DEO supported
- Throttle Range Calibration supported
- Oneshot125 Mode supported
- Oneshot42 Mode supported
- MultiShot Mode supported
- DShot150/300/600/1200 supported
- Timing supported
- Motor Rotation supported
Size & Weight
- Size: 40x33x5mm
- Weight: 12g
Note: If you have any issues with this product, Hobbywing supports the product directly via there support website https:///pages/rma
Manual: https:///products/enpdf/XRotorMicro40A20x20.pdf
